Hose beds/loads - wardengine - 06-03-2008

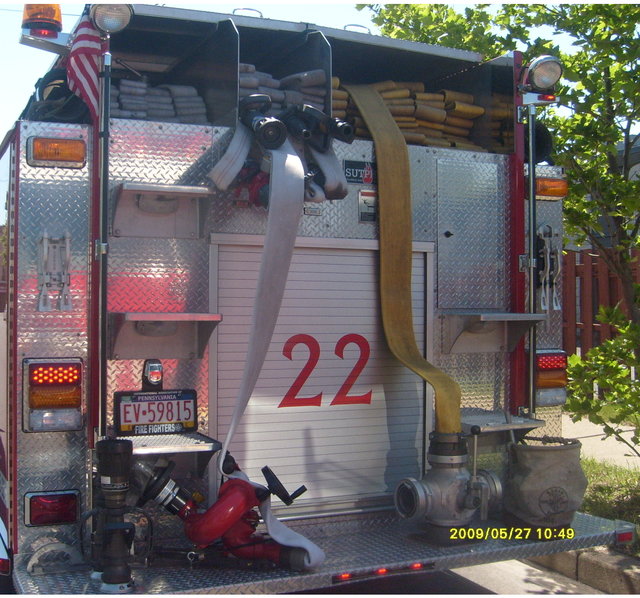

Forty Fort PA engine 22
Hose beds/loads - wardengine - 06-03-2008

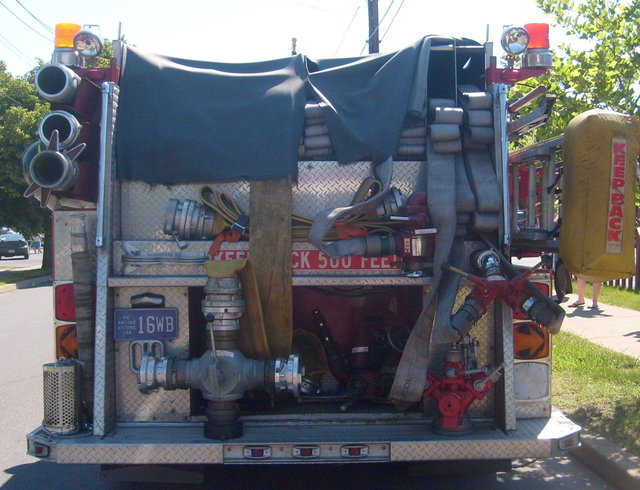

my private owned 1966 Ward LaFrance set up
starting on left 1400' 5 " with hydrasist valve, 1100' 3" with humat valve ,200" 3" preconnected to tail gun, 150' 21/2 preconnected line, accross is 25 ft 5"
Hose beds/loads - tafd00367 - 06-03-2008
[quote name='wardengine' post='218721' date='Jun 3 2008, 10:03 ']
my private owned 1966 Ward LaFrance set up
starting on left 1400' 5 " with hydrasist valve, 1100' 3" with humat valve ,200" 3" preconnected to tail gun, 150' 21/2 preconnected line, accross is 25 ft 5"[/quote]
That's nice rig and hose bed set-up you have there... Are you allowed to use it on fire calls?
Jason
Hose beds/loads - wardengine - 06-03-2008
[quote name='tafd00367' post='218763' date='Jun 3 2008, 13:37 ']That's nice rig and hose bed set-up you have there... Are you allowed to use it on fire calls?
Jason[/quote]
thanks jason, no i don't use it on calls
tom b

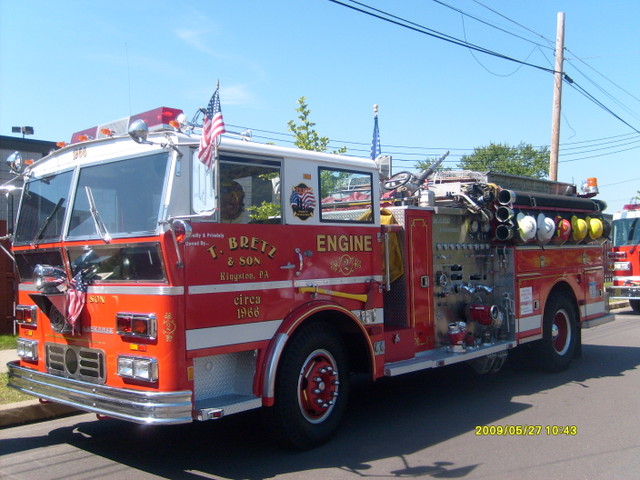

this is front
Hose beds/loads - tafd00367 - 06-03-2008
[quote name='wardengine' post='218798' date='Jun 3 2008, 15:08 ']thanks jason, no i don't use it on calls
tom b
this is front
Very nice Ward... You have it outfitted very well...
Our dept had old Ward that was in front line service 25+ years until it was replaced and later sold to one local VFD... It life came to end in a fire at their station... It was cover-up for some A--hole break in and stealing stuff...
Jason
Hose beds/loads - Guest - 06-03-2008

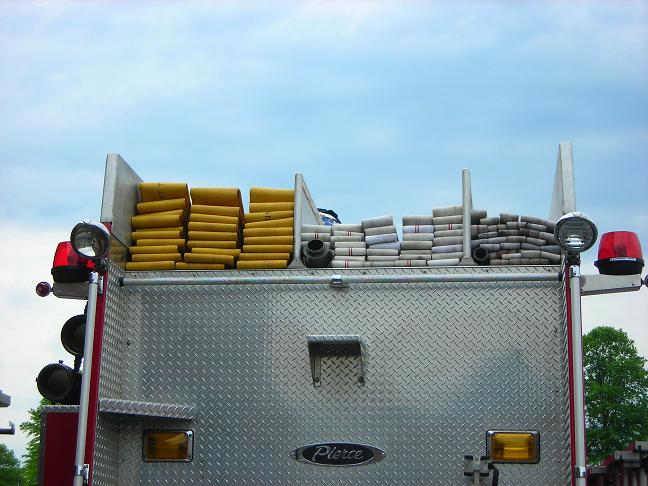

One of the engines we tested in Wilton, NY today. This truck took about 4 hours to test and repack.
Wilton, Saratoga County, NY
ETA-712
1000'- 5", 1500'- 3", 500'- 1 3/4"
Before
After
Hose beds/loads - Guest - 06-03-2008
[quote name='wardengine' post='218716' date='Jun 3 2008, 10:56 ']
Forty Fort PA engine 21[/quote]
Awesome bed. These Guys seem to get it. Split 5" beds, minuteman loads, including the deluge gun. These lines are packed to work. Very nice.
Hose beds/loads - wardengine - 06-04-2008
[quote name='MG3610' post='218835' date='Jun 3 2008, 19:59 ']Awesome bed. These Guys seem to get it. Split 5" beds, minuteman loads, including the deluge gun. These lines are packed to work. Very nice.[/quote]
not 5" but its 4" on all forty fort rigs
Hose beds/loads - Guest - 06-04-2008
[quote name='Txfirephoto' post='218426' date='Jun 2 2008, 09:48 ']Austin, Tx Ex-Engine 28[/quote]
Can anyone speak for Austins beds? It looks like they have 3 layout beds (split beds of 3 and a single bed of 5). Can they can drop dual 3's, single 3 or single 5 or other various combinations, and whats the basis of the beds being set up this way?
Hose beds/loads - ninjamedic2293 - 06-04-2008
Yes they can lay out single 3", dual 3", and single 5". They use rubber jacket 3" and 5" LDH, both with Storz couplings, good hose easy to work with. One of the things I belive that they due on residential structure fires is run dual 3" lines between the 1st and 2nd due giving them minimum 1000 gallons for initial attack. Plug is typically tapped by the 3rd or 4th due engine. As for the trailer hitches, they dont typically pull anything but I believe it is intended for the zodiacs that we have a number of since most do not have dedicated vehicles to pull them.
Hose beds/loads - Txfirephoto - 06-05-2008
Volente, Tx Engine 1401
Hose beds/loads - Txfirephoto - 06-07-2008
Austin, Tx Engine 23
Hose beds/loads - Txfirephoto - 06-07-2008
College Station, Tx Engine 721
Hose beds/loads - Txfirephoto - 06-07-2008
Taylor, Tx Tanker 2
Hose beds/loads - jbrown9079 - 06-09-2008
All 7 engines of the Klein FD are set up this way
200' 2.5 preconnect
1050' 5in
300' 3in gated to a 150' 1.75 bundle
200' 2.5 preconnected blitzfire
Hose beds/loads - jbrown9079 - 06-09-2008
Sugar Land Tx Engine 3, 5, 6 is set up with the following.
L to R
200' 1.75
250' 1.75
1000' 5in supply
200' 2.5 preconnected with dead lay of 400ft underneath
The replacement engine currently being spec'd for E1 will have an additional divider for a preconnected blitzfire.
Sorry about the shadows.
Hose beds/loads - Txfirephoto - 06-09-2008
North Lake Travis Ex-Engine 103
Hose beds/loads - hp1530 - 06-11-2008
LAFD Engine 88 with a slightly modified crosslay (the green hose is forestry hose)
Hose beds/loads - Guest - 06-11-2008
What are the lengths of the LAFD Engine for the hose?
Hose beds/loads - hp1530 - 06-11-2008
[quote name='Squirrel' post='220864' date='Jun 11 2008, 07:52 ']What are the lengths of the LAFD Engine for the hose?[/quote]
From the yellow hose back:
Yellow 1 3/4 - 400'
Middle - 1" -500' or 600' depending on jurisdiction
White striped 1.5" - 400'
I have no idea about the green hose, I haven't seen it till now.
