Hose beds/loads - hoss - 02-26-2008
Lakeville, CT E-60
![[Image: IMG_9358.jpg]](http://www.fireservicephotography.com/01_2008/012608/images/IMG_9358.jpg)
Hose beds/loads - hoss - 02-26-2008
Pittsfield, MA E5 & E3
![[Image: IMG_8983.jpg]](http://www.fireservicephotography.com/01_2008/011808/images/IMG_8983.jpg)
![[Image: IMG_9010.jpg]](http://www.fireservicephotography.com/01_2008/011808/images/IMG_9010.jpg)
Hose beds/loads - hoss - 02-26-2008
Pittsfield, MA E1 - that's about it since Jan 01, 2008 - might be able to hunt back in the archives for more swell ideas, but I got to go to work. My 1st 3-11 after 13 years of being on mid-nights - should be interesting.
![[Image: IMG_9054.jpg]](http://www.fireservicephotography.com/01_2008/011808/images/IMG_9054.jpg)
Hose beds/loads - Guest - 02-26-2008
Thanks, Ed. Any of the folks in your neck of the woods have 'water supply' rigs?
Hose beds/loads - camdenfirespfn - 02-29-2008
Here is a shot I took 2/24/2008 , it is Philadelphia Pipeline 20 using a reserve 1987 E One pumper !! What a hose load !! Be Safe all
Steve
Hose beds/loads - Guest - 02-29-2008
[quote name='camdenfirespfn' post='192817' date='Feb 29 2008, 12:03 ']Here is a shot I took 2/24/2008 , it is Philadelphia Pipeline 20 using a reserve 1987 E One pumper !! What a hose load !! Be Safe all
Steve[/quote]
Nothing like being in the bottom of the bottom reserve piece huh... this is the one that was in the firehouse next to the other E\-One that caught fire. My buddies at E-22 said that the shops just repainted this one becasue it was "Salvagable" but they also told me that they lost compartment doors going around turns, the dash board kept fall out and the tank leaked real bad. LOL, It is most likely in better shape than thier KME though. <img src='http://www.firepics.net/groupboards/public/style_emoticons/<#EMO_DIR#>/hysterical.gif' class='bbc_emoticon' alt='
' />
Hose beds/loads - hp1530 - 02-29-2008
[quote name='Wagon Master' post='192873' date='Feb 29 2008, 12:12 ']Nothing like being in the bottom of the bottom reserve piece huh... this is the one that was in the firehouse next to the other E\-One that caught fire. My buddies at E-22 said that the shops just repainted this one becasue it was "Salvagable" but they also told me that they lost compartment doors going around turns, the dash board kept fall out and the tank leaked real bad. LOL, It is most likely in better shape than thier KME though. <img src='http://www.firepics.net/groupboards/public/style_emoticons/<#EMO_DIR#>/hysterical.gif' class='bbc_emoticon' alt='
' />[/quote]The most important part is that the truck runs right? Hopefully when they pull out for their next call the engine nor transmission wont fall out.
Hose beds/loads - Guest - 03-03-2008
Edgely FC Squad 10. 400' 1 3/4 on a Gated Y, 1200' 5", 300' of 3" attached to a Blitzfire.
Hose beds/loads - Guest - 03-03-2008

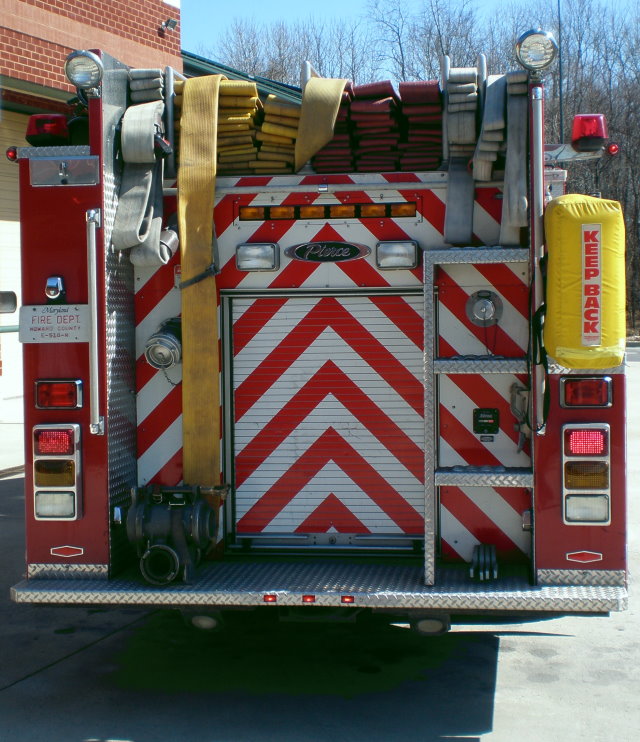

Here are some shots of the rear of Howard County MD Engine Co. 51. The beds from drivers side to passengers side contain:
- 150' of 3" hose minute man loaded with a gated wye to serve as a leader line with 150' of 3" hose dealoaded under it to extend if needed.
- 800' of 4" hose
- 800' of 4" hose
- 200' of 2.5" attack line with a elkhart chief low pressure nozzle
- 400' of 1.75" attack line with a elkhart chief low pressure nozzle
Hose beds/loads - Guest - 03-03-2008
Close up shot.
Hose beds/loads - Guest - 03-07-2008
This was a quick grab yesterday while near LAX playing with my new 200-500mm lens. LAFD E51's hose load.
Hose beds/loads - Guest - 05-17-2008
Franklin PA, 4GUYS rescue engine. Supply line bed is blocked by raised door.
Hose beds/loads - Guest - 05-17-2008
Hummels Wharf Crimson rescue engine. Carries 1300' of 5".
Hose beds/loads - Guest - 05-17-2008
Benton VFD, PA Darley mini with 1250gpm pump and CAFS, 500' of 5"
Hose beds/loads - Guest - 05-17-2008
Schwenksville PA, Darley mini. 500gpm, CAFS, 2 - 200' 1 3/4" preconnects, booster, 400gal water, 20gal "A", 300'-3".
Hose beds/loads - Guest - 05-19-2008

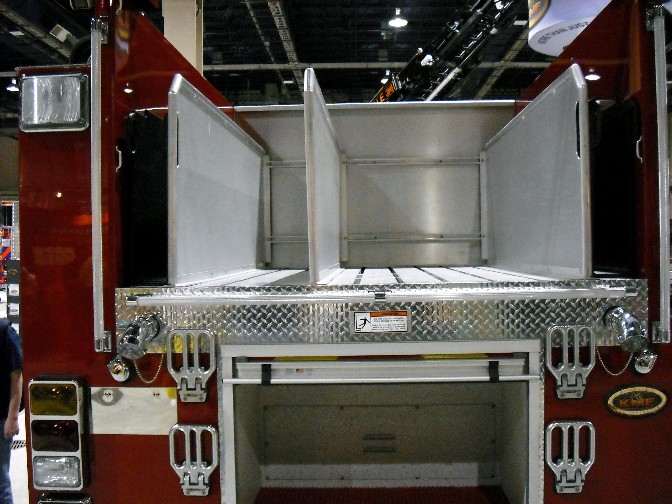

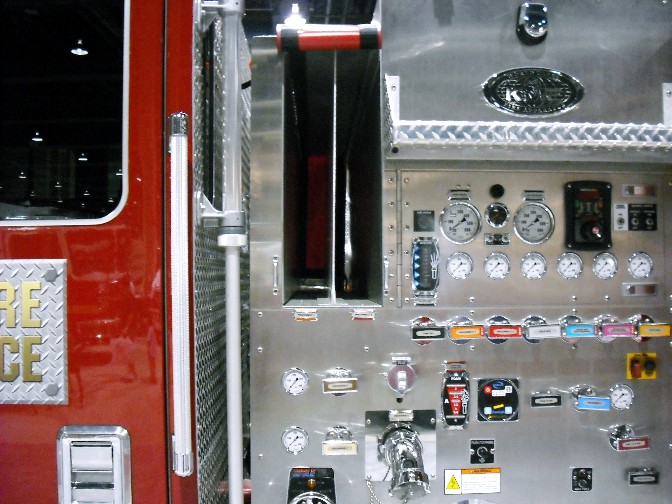

KME Severe Service Wagon, 750 tank, low hosebed. I personally don't care for the preconnect slide-outs.
Hose beds/loads - Guest - 05-19-2008
KME Severe Service Wagon with low crosslays. This piece was designed to fight fire.
Hose beds/loads - Guest - 05-19-2008
Bower Hill, PA Sutphen.
Hose beds/loads - Guest - 05-19-2008
ALF with low hosebed. I believe this is from Bensalem Twp. PA
Hose beds/loads - Guest - 05-20-2008
West Windsor NJ E43-1
2007 KME
[url="http://good-times.webshots.com/photo/2799900810062213598pwYRmN"]
![[Image: 2799900810062213598S600x600Q85.jpg]](http://inlinethumb36.webshots.com/31779/2799900810062213598S600x600Q85.jpg)
[/url]Left to Right
-250' 1 3/4" Minuteman preconnected with 150' dead loaded underneath (400' total)
-600' 3" with water thief and double female adapter for attack or secondary layout
-400' 2 1/2" static bed
-1200' 4" (300 PSI attack grade supply hose)
-400' 2" minuteman preconnect
Front Bumper
[url="http://good-times.webshots.com/photo/2789562750062213598einYuf"]
![[Image: 2789562750062213598S600x600Q85.jpg]](http://inlinethumb13.webshots.com/3660/2789562750062213598S600x600Q85.jpg)
[/url]-25' 5" intake hose
-100' 1 1/2" ("Kentland" load)
-25' 4" pony section
50' 1" forestry line
[url="http://good-times.webshots.com/photo/2041955300062213598ZpJzMr"]
![[Image: 2041955300062213598S600x600Q85.jpg]](http://inlinethumb26.webshots.com/18713/2041955300062213598S600x600Q85.jpg)
[/url]150' 1 3/4" ("Kentland" load)
Email me if any additional details are needed.
